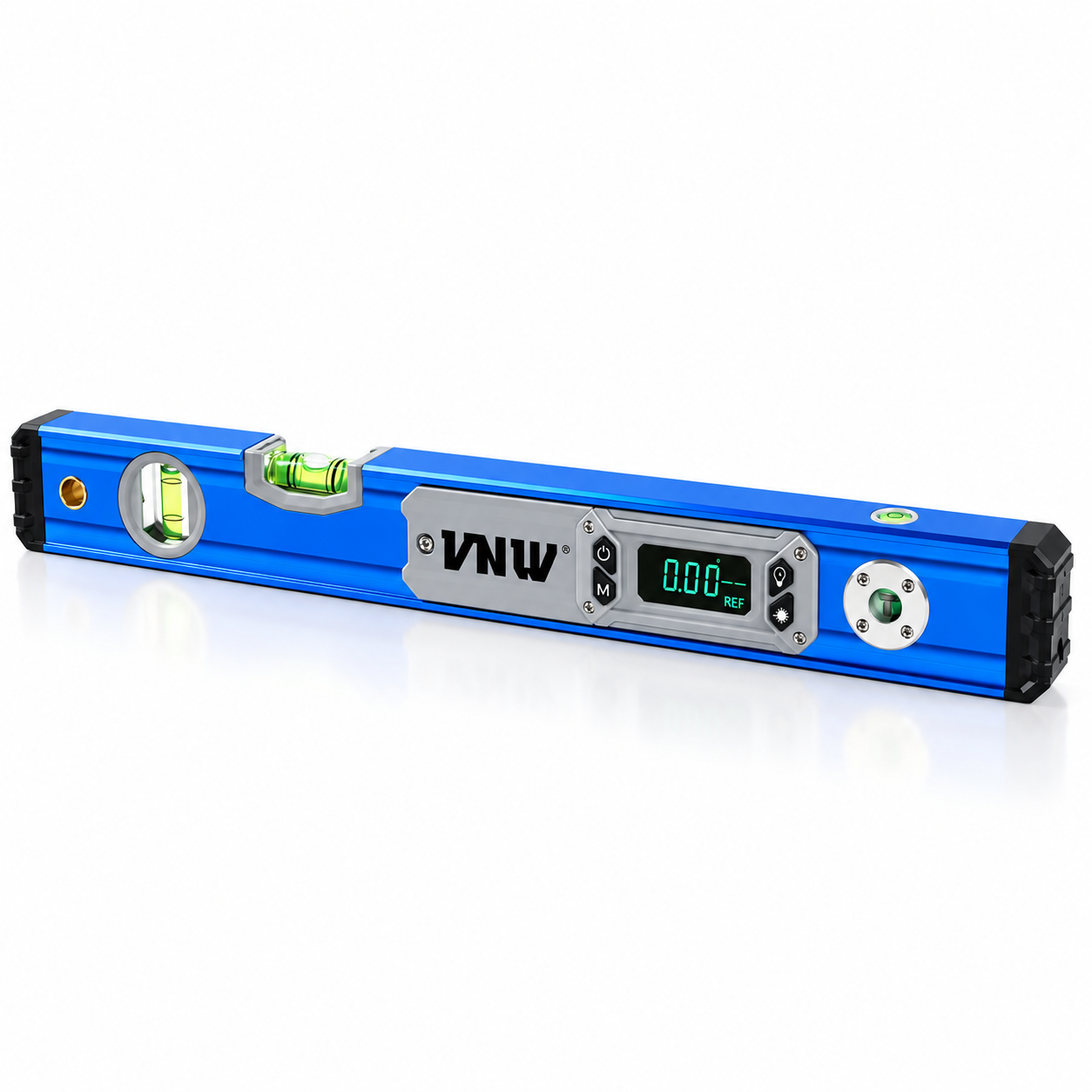

The 6063 aluminum product features a 1.2mm thickness with a 1.7mm lower base surface.
It undergoes anodic oxidation treatment and laser marking functionality, incorporating 180/90-degree PMMA water bubbles with 0.5mm/M precision.
The horizontal ruler’s top end contains a 360° water bubble indicator.

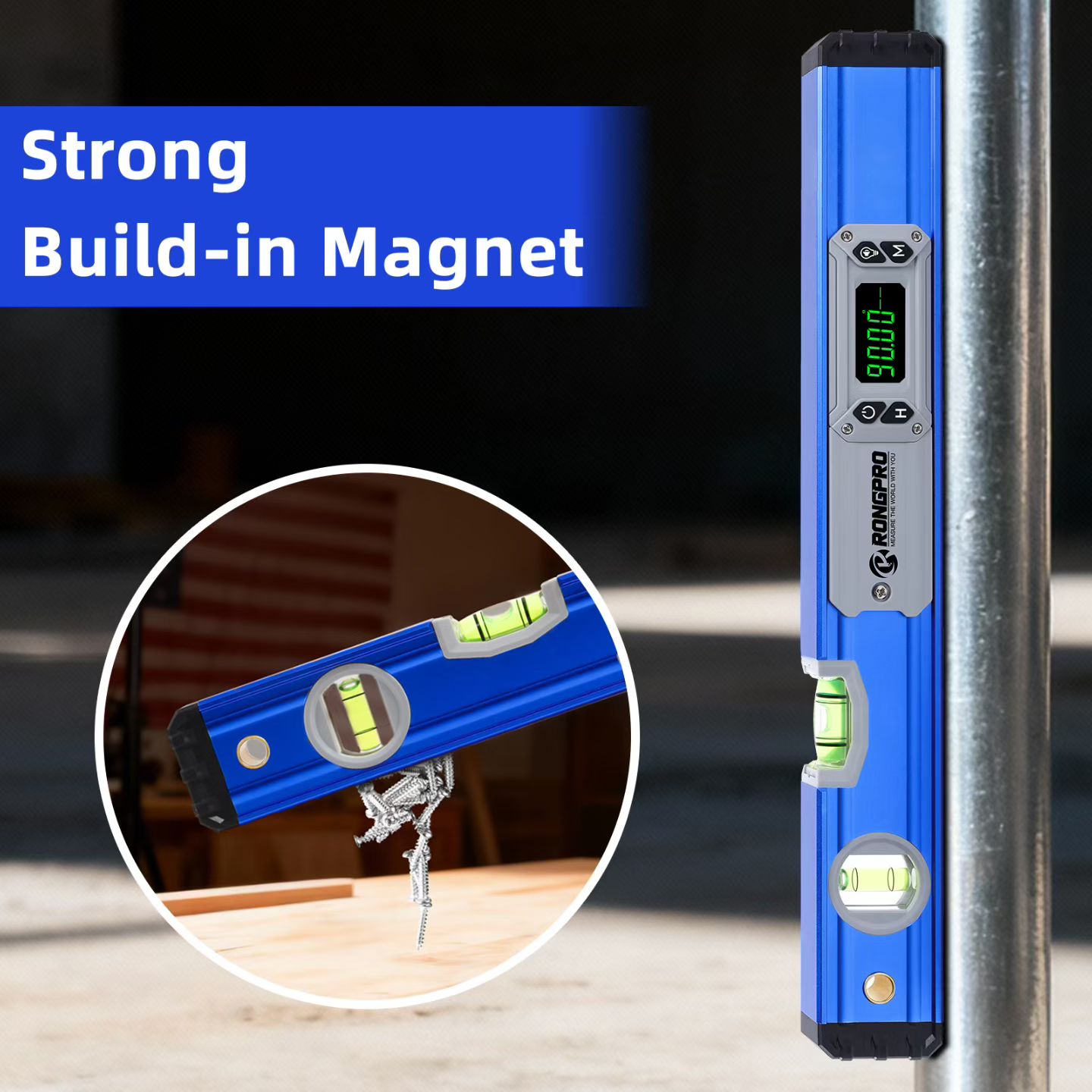

The device avoids bottom milling and includes internal magnets with a shock-resistant TPR soft end cap.
Key functions include: angle measurement, cross laser alignment, spot laser projection, LED lighting, and angle measurement accuracy of ±1°.°.MM/M. INFT mode specifications:
2: Angle range 4×90°;
3: Display resolution 0.05°;
4: Precision ±0.15°;
5: Reproducibility 0.1°;
6: 2×AAA batteries;
7: Operating temperature-10°/60°;
8: 620/650nm laser wavelength (Class 2 laser intensity);
9: Cross laser range 20m, spot laser range 50m; IP54 waterproof rating. When angle deviation reaches ±0.15°, horizontal indication mode activates: Mode 1 activates the LED light below the horizontal bubble for visual reference; Mode 2 emits a buzzer sound with increasing intensity as angle approaches 0°.
Both modes can be freely switched based on operational scenarios.
